Battery Disconnect Kit - afterfix
Choose options
■ Limiting continuous current 260A at 23°C
■ Electrically settable and resettable ON/OFF bistable device
■ High peak current carrying capability up to 1500A
Rated voltage 12VDC
Maximum switching voltage 16VDC
Limiting continuous current 23°C 260A 85°C 190A 125°C 88A
Limiting making current
resistive load, cable 50mm2, 23°C 1500A, >5 ops.ton/toff=0.5s/10min

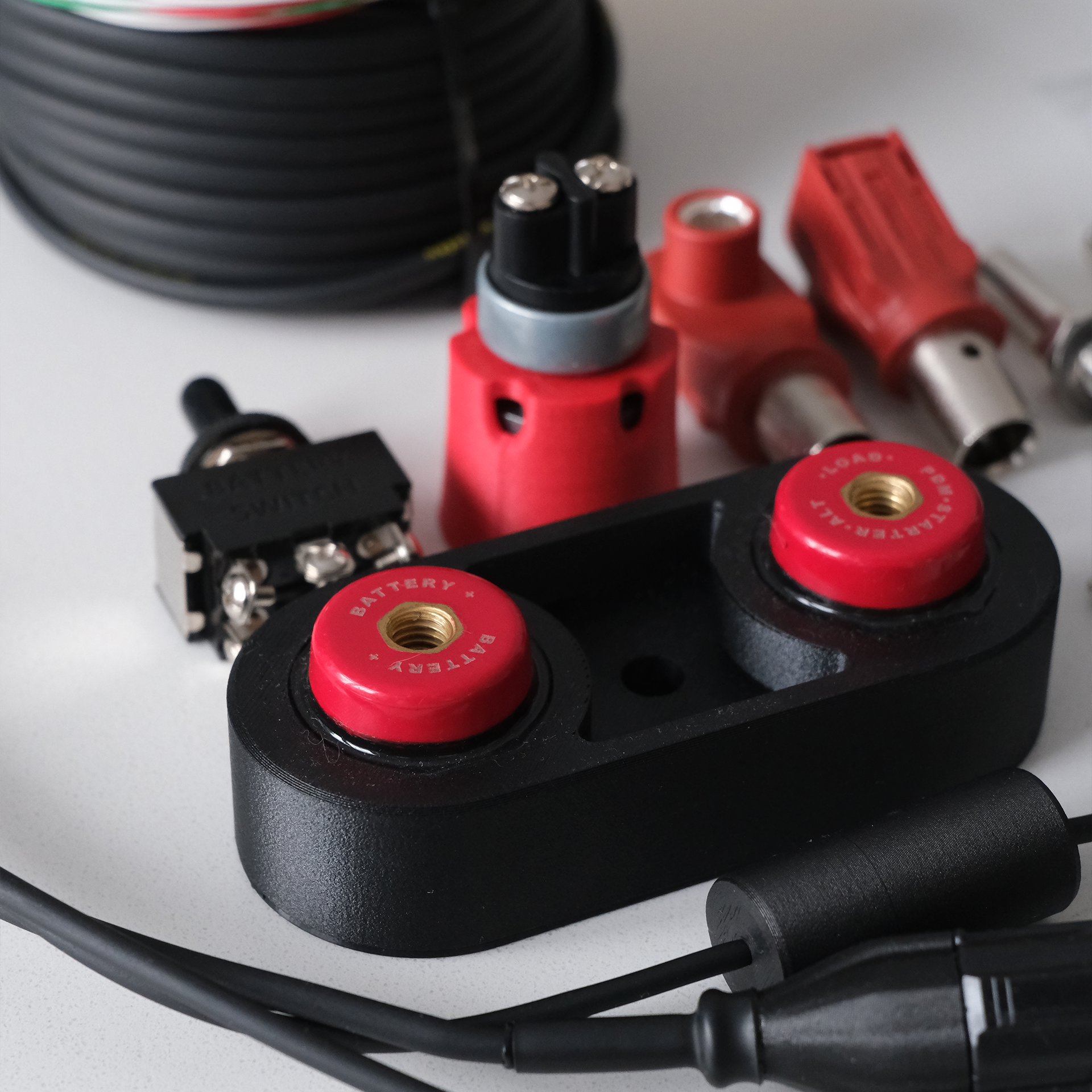

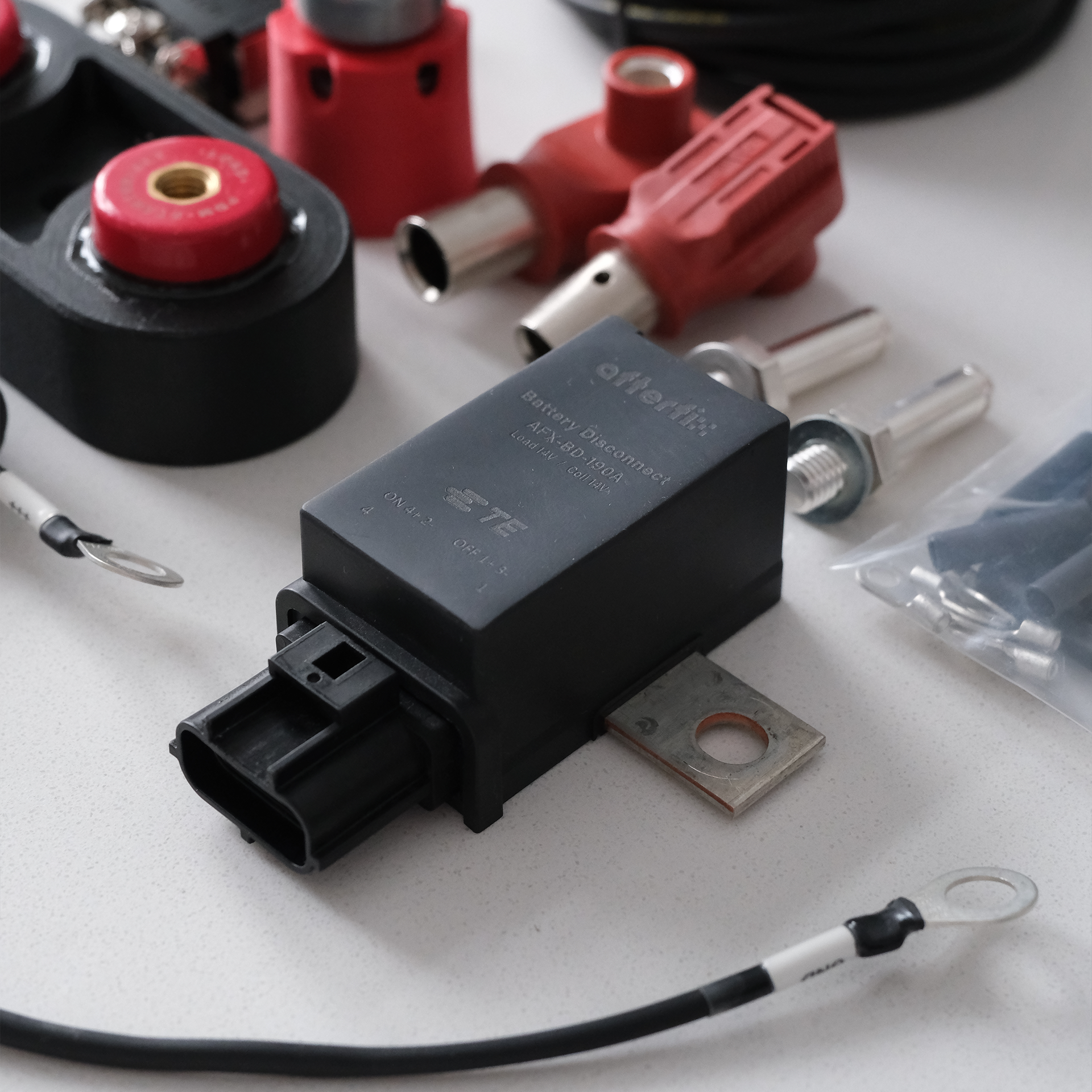

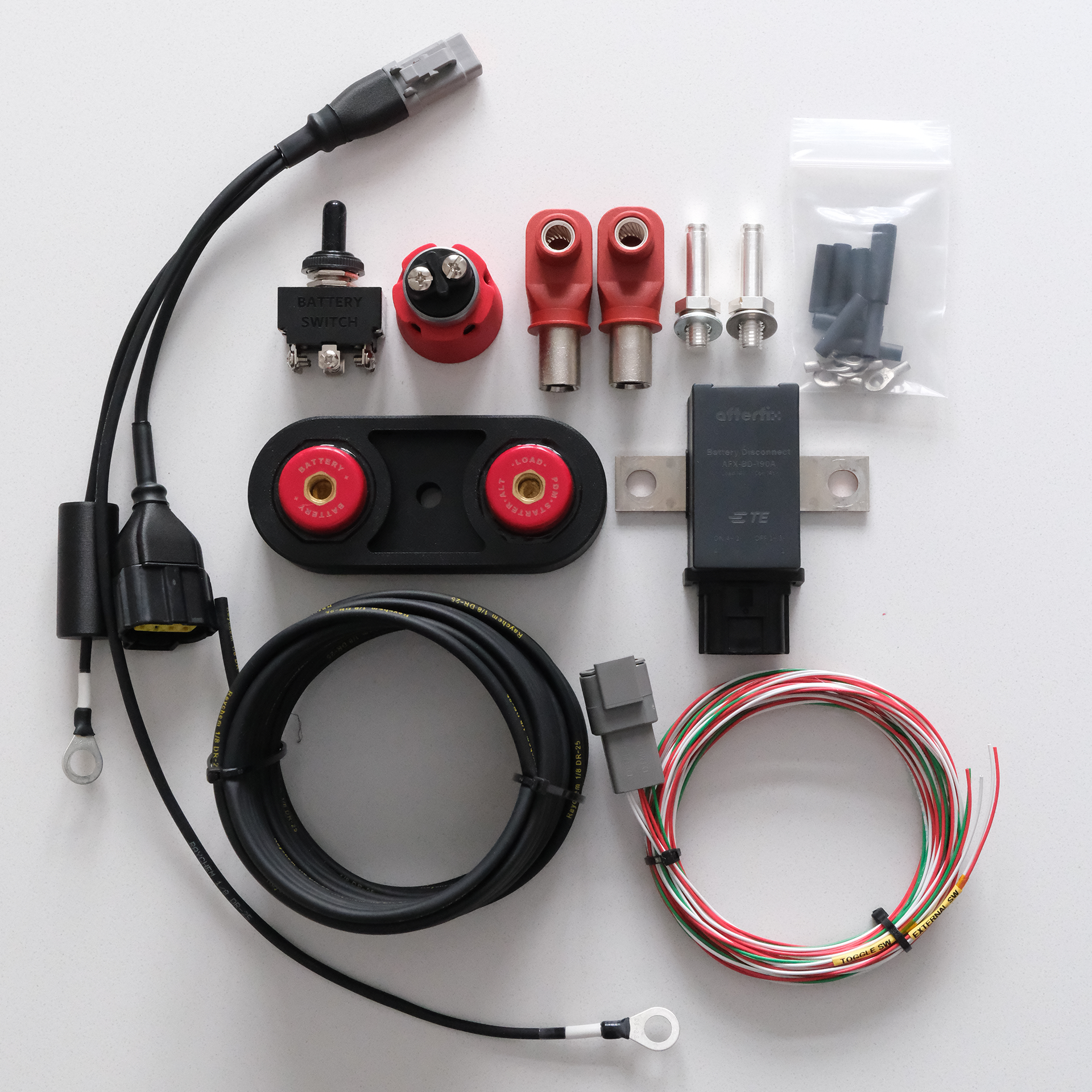

- High Current Relay
- Insulation Platform
- Interior two-position toggle switch

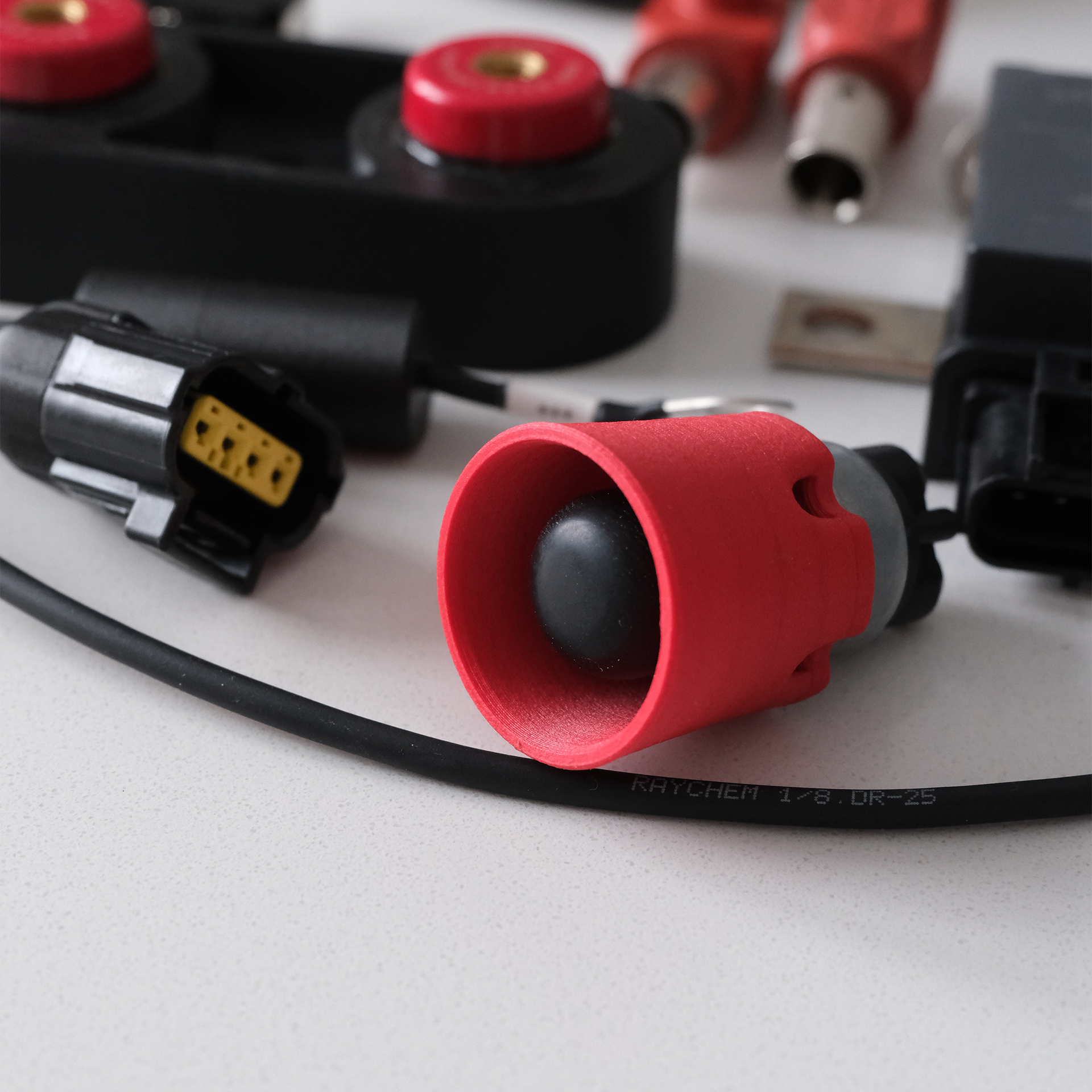

- Exterior disconnect button in a protective housing
- 2x Radlok connectors with pins
- Control wiring with relay coil protection

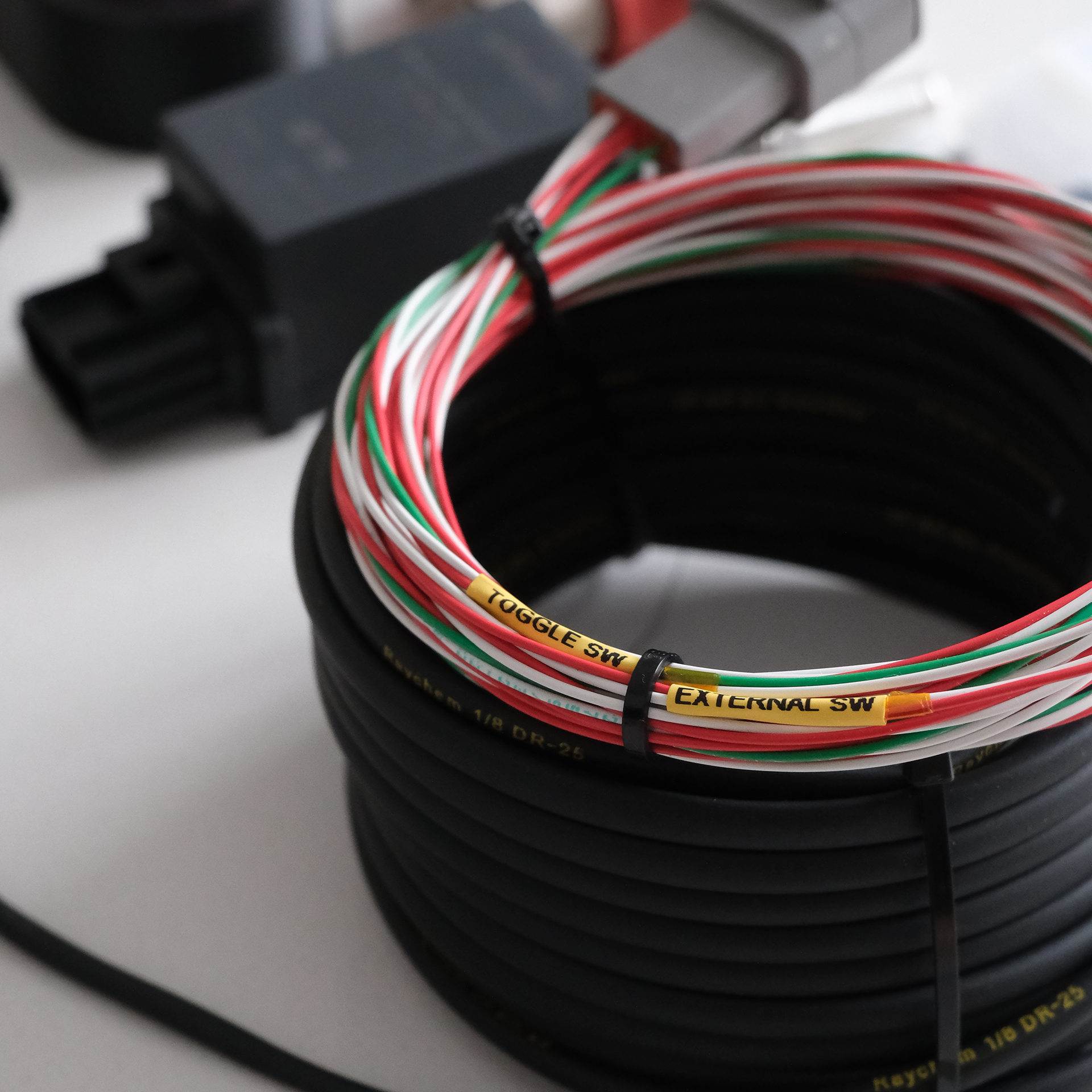

- Installation harnesses for:
Interior switch - 3m
External Button - 3m - DR-25 heat-shrink tubing — 6 m (1/8")
- Ring terminals and SCL heat shrink
